interior carbon crystal wood doors-0

Interior Wooden Doors

Home >  Products >  Interior Wooden Doors

Products

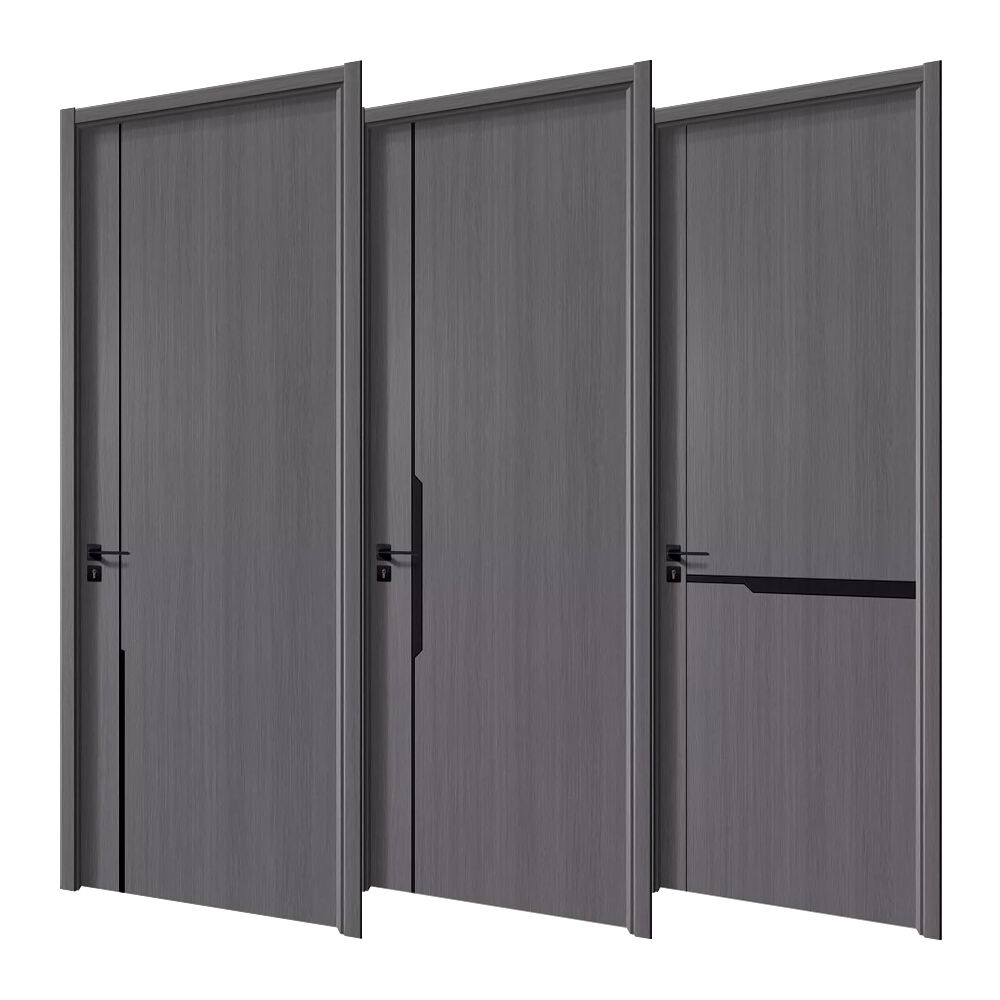

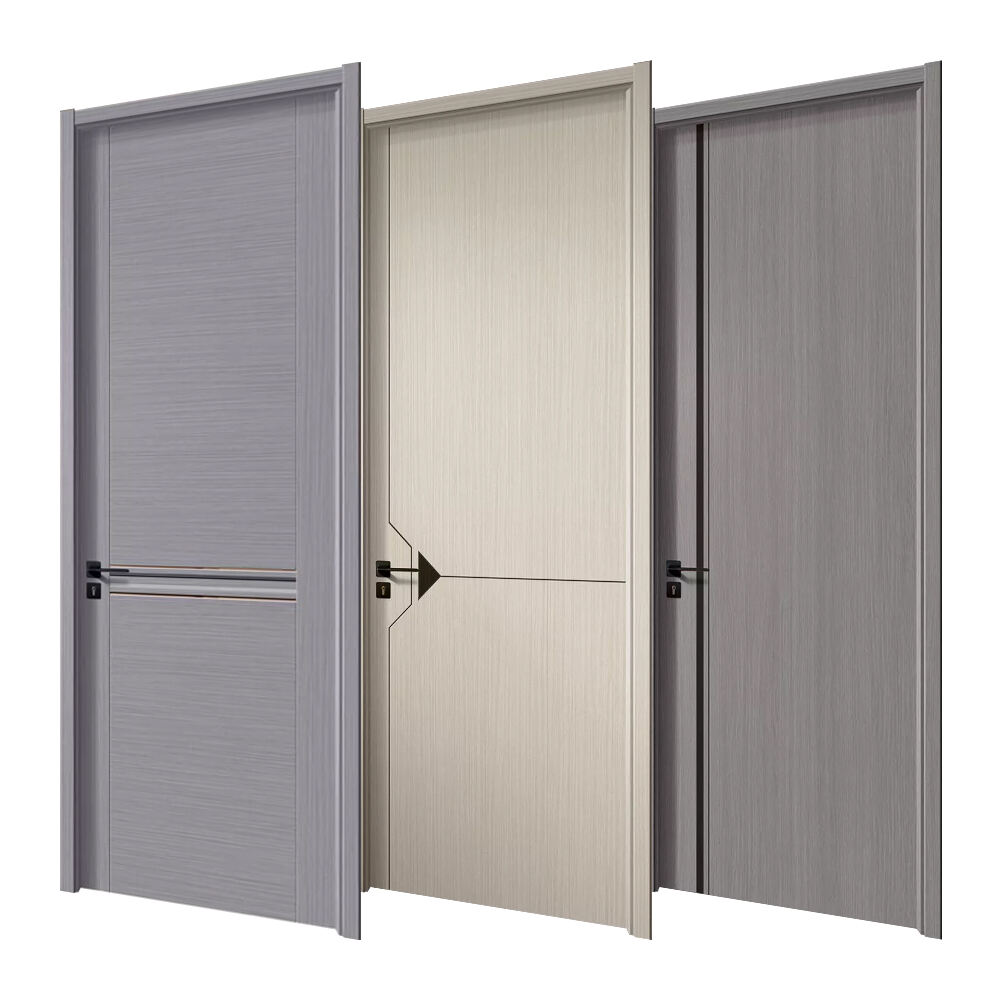

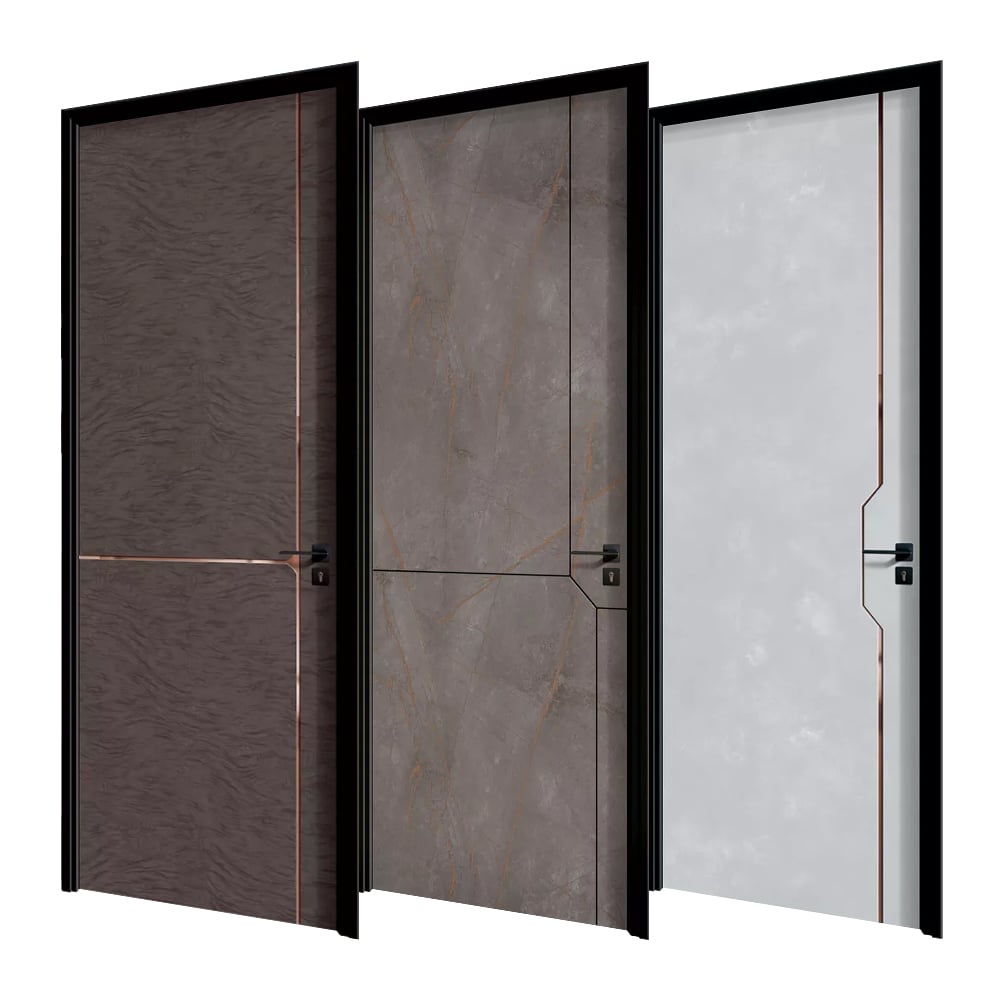

Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors
Interior Carbon Crystal Wood Doors

Interior Carbon Crystal Wood Doors

Inquiry Product Testing & Certification
  • Description
  • Detailed Photos
  • Color
  • Glass
  • Hardware
  • Inquiry


Crafted with aerospace-grade carbon fiber cores and nano-treated wood veneers, our doors deliver 3x the strength of traditional solid wood while weighing 30% less. The patented carbon crystal structure resists warping (<0.5mm deformation in humidity cycles) and exceeds ANSI/BHMA A156.6 standards.

Brand Name
Puertana
Solid Wood‌
  Premium oak, maple, or walnut (thickness: 1.6" / 40mm) for classic durability
MDF Core
Moisture-resistant medium-density fiberboard (1.75" / 45mm) with veneer finishes
Engineered Wood
Eco-friendly laminated layers (1.75" / 45mm) for stability in humid areas
Finish & Customization

Pre-primed (ready for paint) or factory-finished in 15+ RAL colors
Glass Option
Optional glass inserts (tempered, frosted, or stained designs)
Sound Insulation
STC 28–32 rating for noise reduction
Fire Rating
20/45/60-minute options
  Warranty
10 Years
  Application
Residential, Commercial
Main Market
USA,CA,EUR,Africa.



Signature Features

  • Thermal Stability: Withstands -30°C to 80°C without expansion
  • Eco-Certified: CARB NAF compliant, 0.1ppm formaldehyde emission
  • Customization: 200+ RAL colors, 6 woodgrain textures (e.g., Fumed Oak, Linear Walnut)


‌Technical Specifications

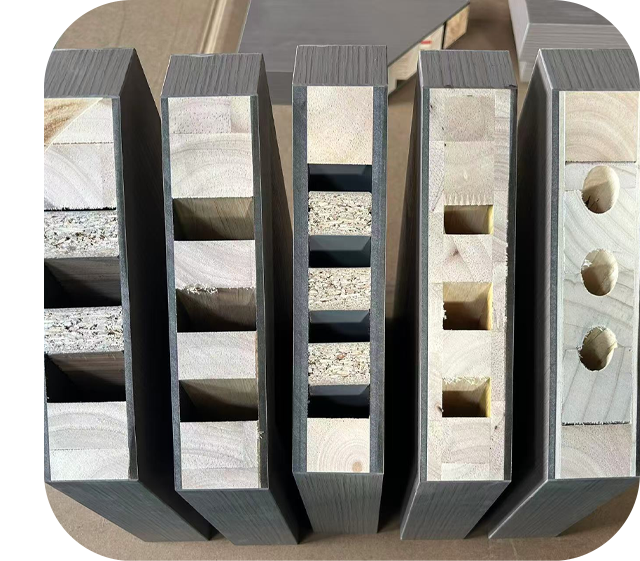

    • ▸ Thickness: 45mm (1.77") with 12-layer composite construction
      ▸ Fire Rating: Class B1 (GB8624-2012), 30-minute integrity
      ▸ Acoustic Performance: 35dB STC rating for privacy

    ‌Design Flexibility:‌

    • • Frameless options for minimalist interiors
      • Integrated smart lock prep (Zigbee/Bluetooth module slots)
      • Optional tempered glass inlays (5mm thickness, UV-filter variants)





‌Installation Guidelines

  • ‌Pre-Hung Door Assembly‌

    • Align the pre-attached frame with the rough opening (typically 2" wider/taller than the door slab) and secure using shims for leveling.
    • Fasten hinges to the frame with 2.5" screws (included) at 16" intervals .

  • ‌Slab Door Installation‌

    • Mortise hinges 5" from the top/bottom and 7" from the center (standard for 80" doors).
    • Drill latch bore at 34"–36" height (2-1/8" diameter) and striker plate recess.

  • ‌Adjustments & Finishing‌

    • Plane ≤1/8" off the bottom for carpet clearance; seal edges with silicone for moisture-prone areas.
    • Use 3" finish nails for trim, spaced ≤12" apart.

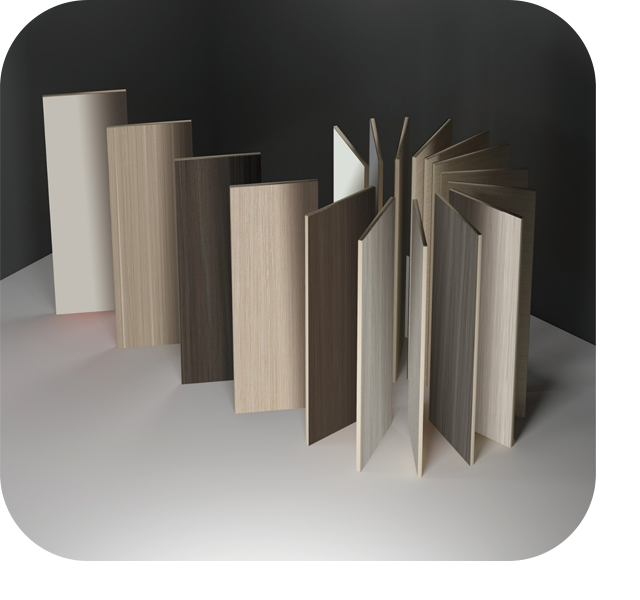

Choose Your Finish

  • ●  RAL color customization available (2,328 standard shades)
  • ● Exact RAL color matching (provide color code)
  • ●   Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.
  • *Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.

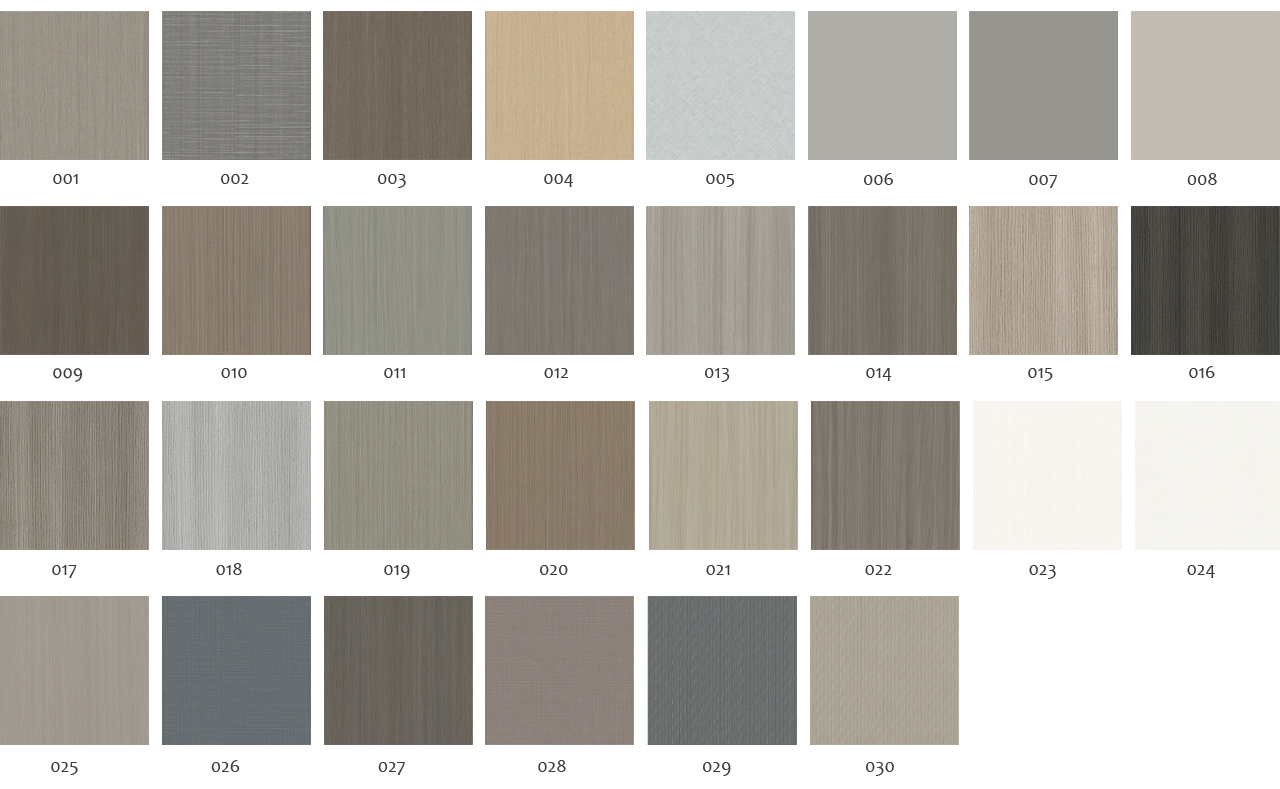

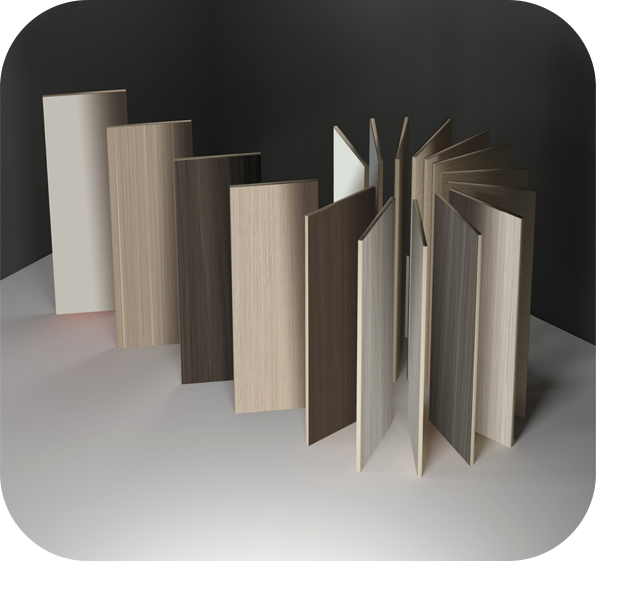

Carbon Crystal Standard Finishes



140x140

    • ●  Single Glass(5mm, 6mm, 8mm, 10mm….)
    • ●   Laminated Glass(5mm+0.76pvb+5mm)
    • ●   Double Toughened Glass(5mm+12air+5mm)
    • ●   Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
    • ●   Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
    • ●   Thickness of single glass: 5-20mm
    • ●   Glass types: Frosted glass, Toughened glass, Low-e coated glass
    • ●   Special performance glass: Fireproof glass, Bulletproof glass
    • ●   Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.


Configurations

●   V-Groove  ●   Obscure  ●   Reeded   ●   Flemish  ●   Glue Chip  ●   Austral

●   Narrow Reeded  ●   Aquatex  ●   Florex   ●   Rain  ●   Hamered  ●   Renova



High-end Accessories Options

  • ● Privacy Handle
  • ● Keyed Handle
  • ● Passage Handle
  • ● Keyless Handle
  • ● SUS 304 stainless steel hinge
  • ● Key cylinders
  • ● Door stopper
  • ● Door spyhole
  • ● Puertana always choose seriously hardwares&accessories for customers with 10 years warranty
