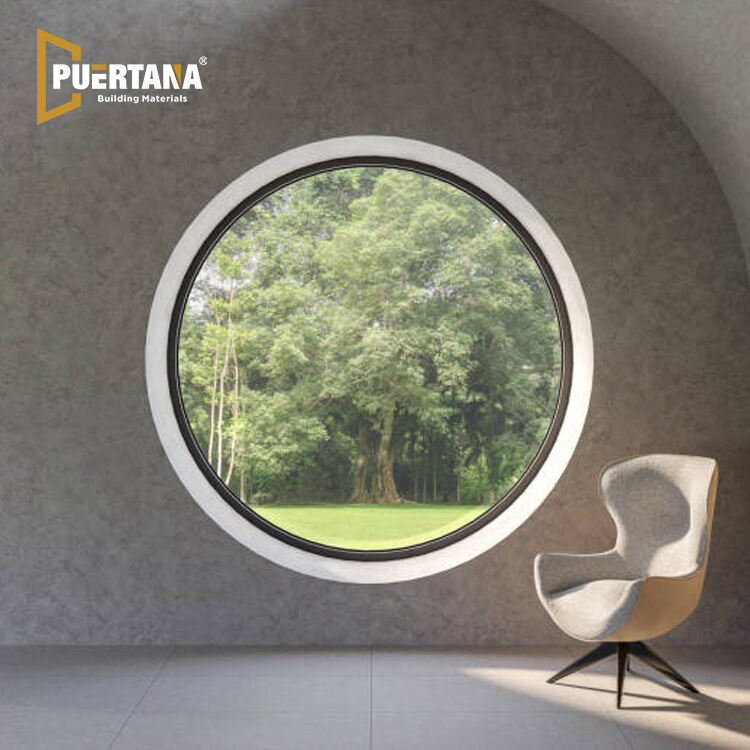

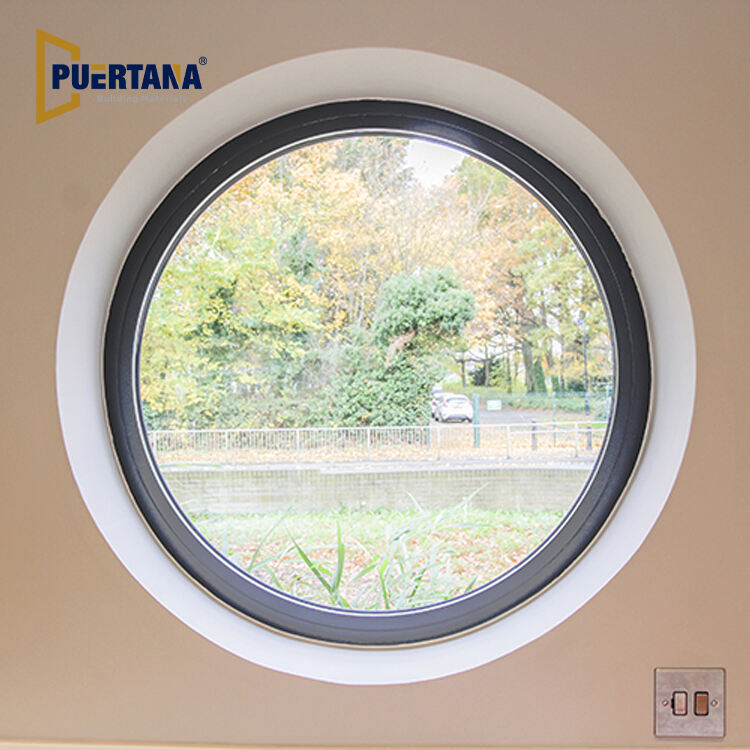

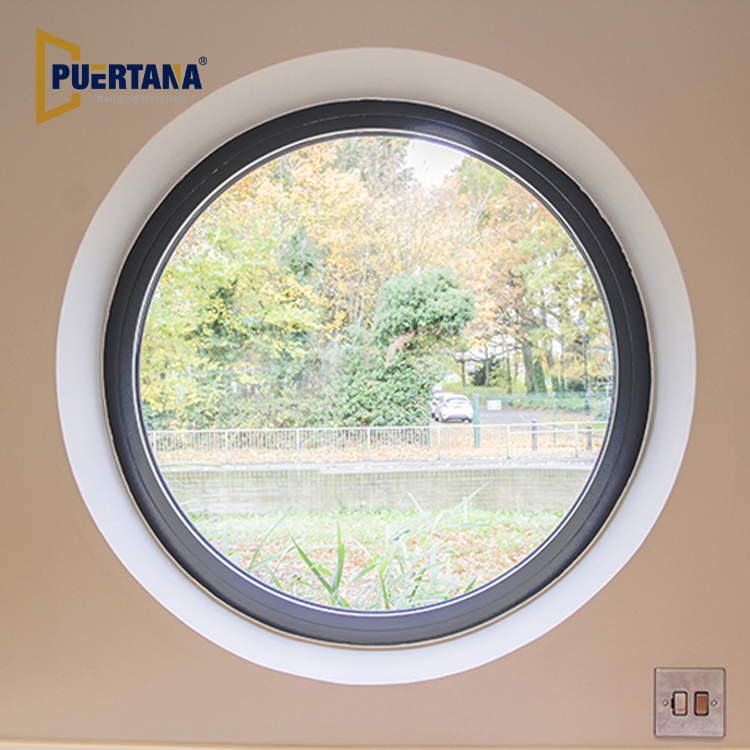

Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade
Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade

Corrosion-Resistant Aluminum Round Picture Windows – Marine & Coastal Grade

Inquiry Product Testing & Certification
  • Description
  • Detailed Photos
  • Color
  • Glass
  • Grille & Screens
  • Inquiry


Also known as fixed windows, are non-operable, meaning they can not be opened. This makes them offer enhanced security, energy efficiency and allows for larger sizes. This type of window can be assembled with or without a sash. With thin, low-profile frame, they are often used in areas where an unobstructed view is desired to maximize views and natural light.
Thermal Break Aluminum Fixed Picture Windows factory

Brand Name
Puertana
Open Style
  Fixed / Non- opening
Profile Thickness
  1.2 mm to 3.0 mm
Surface treatment
  Powder coating (RAL color options), anodizing, wood-grain finish.
Glass Configuration
  5-8mm (single), Double glazing(insulating glass unit),Optional upgrades: Low-E glazing, tempered glass, laminated glass (for safety/energy efficiency).
Thermal Insulation
  1.2–3.0 W/(m²·K) (varies with glazing and frame insulation; lower values mean better heat retention)
SHGC(Solar Heat Gain Coefficient)
   0.2–0.7 (depends on glass coatings)
Sound Insulation
25–45 dB (reduces external noise)
Air Tightness
Up to Class 5 (per standards like ASTM/GB/T)
Wind Load Resistance
2.0 - 4.0 KPa
Water Penetration
Up to Class 4 (resists water penetration under specified pressure)
Window Standard
NFRC,CE
  Glass Standard
IGCC / SGCC / CE /AS2208
  Warranty
10 Years
  Application
Residential, Commercial
Main Market
The North America and South America, EUR, Australia, Africa and Middle East.



Why choose it?

  • ● Energy efficient

  • Picture windows are the cheapest type of windows but they are very effective and useful. They offer high performance against sound, air and water infiltration.The insulation helps to reduce the amount of energy needed to heat and cool the home, saving money on energy costs.

  • ● Personality

    Besides making your home more beautiful and energy efficient, the shape of the picture windows you choose say a lot about who you are. When you add a specialty shaped picture window to your home, you make it truly yours; it's a reflection of your style.



Technical Specs

  • ● Hi-Tech profile and reinforced material
  • ● Reinforced glass fiber thermal insulation bar with high loading capacity
  • ● Pressure extrusion for higher strength level
  • ● Coex wire seal to protect against moisture
  • ● Multi-point hardware lock system for weather sealing and burglarproofing
  • ● Truss structure design for increased structural strength
  • ● Tilt-turn system achieves the AAMA rating of CW-PG60
  • ● Corner locking key ensures the smooth surface joint and improves corner stability
  • ● Glass panel EPDM foam weather sealing strip used for better performance and easier  maintenance than standard glue

140x140



140x140

What Are Soundproof Windows?

Soundproof windows aren’t able to completely block all noises, but there are a variety of ways to help make your home quieter. Loud, annoying sounds can occur nearly anywhere. Homes near a bustling city, highway, construction zone or loud pets are subjected to unwanted sounds. Noise reducing windows help minimize annoying, unwanted sounds that occur outside your home. While no windows are completely soundproof, there are several steps you can take to improve the sound resistance in your home. As cities become louder and noise pollution increases, more homeowners are looking for ways to create a serene environment in their home.

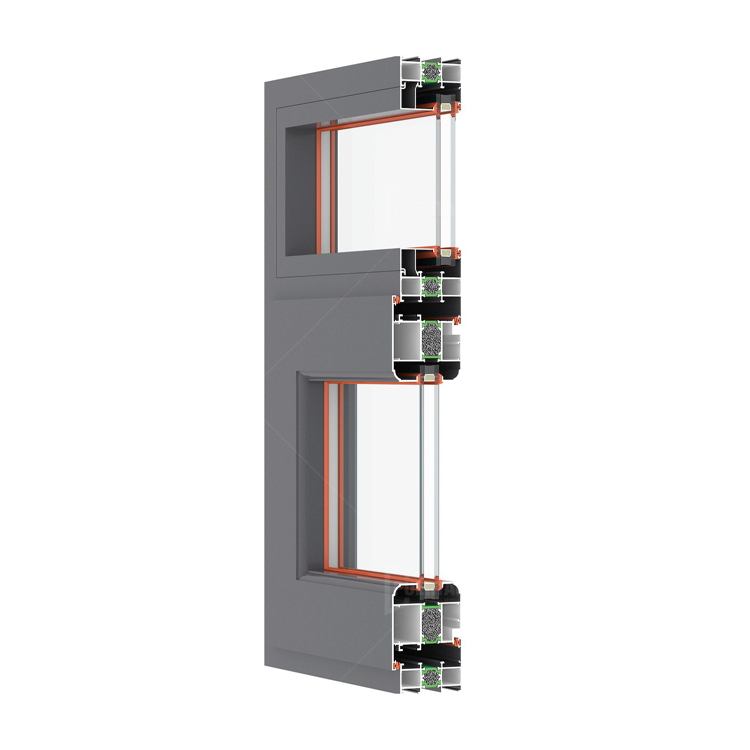

What are Thermally Broken Windows?

● When we speak of a thermal break, think of a protective border between the outside part of the window frame and the inside. This specially-made insulator helps to make sure that even when the external part of the frame is freezing, the internal part won’t. It stops condensation and thin ice from piling up on the inside and even the furniture and upholstery will be defended from dampness.

● The word break has nothing to do with something getting damaged. It simply refers to the separation or a space between the two pieces of metal in the frame. The thermal aspect has to do with the temperature-balancing nature of the ‘break.’ This is an innovation that arose from the need to have a better insulation solution for metallic windows in homes, and that’s the whole idea.

140x140




140x140

Choose Your Finish

  • ●   Puertana Commen Color: Frosted Black, White Powder Coating
  • ●   Silver grey powder coating, Silver anodising with INTERPON powder
  • ●   Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • ●   Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • ●   White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • ●   Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • ●   Monument(Matt), Clear, Residential Bronze
  • ●   Cedar, Mahogany, Honey Gum, Snow Gum
  • ●   Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.
  • *Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.

Powder Coat Standard Finishes



140x140

    • ●  Single Glass(5mm, 6mm, 8mm, 10mm….)
    • ●   Laminated Glass(5mm+0.76pvb+5mm)
    • ●   Double Toughened Glass(5mm+12air+5mm)
    • ●   Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
    • ●   Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
    • ●   Thickness of single glass: 5-20mm
    • ●   Glass types: Frosted glass, Toughened glass, Low-e coated glass
    • ●   Special performance glass: Fireproof glass, Bulletproof glass
    • ●   Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.


Configurations

●   V-Groove  ●   Obscure  ●   Reeded   ●   Flemish  ●   Glue Chip  ●   Austral

●   Narrow Reeded  ●   Aquatex  ●   Florex   ●   Rain  ●   Hamered  ●   Renova



Full divided light

  • ● Permanently applied grilles on the interior and exterior of the window with a spacer between the glass. Choose from a contoured or contemporary profile.

  • ● It is available in the color that matches the exterior color of the window you choose.
  • ● SDL Grilles are permanently attached to both the interior and exterior glass

  • Grilles-Between-the-Glass

    ● Aluminum grilles conveniently placed between two panes of glass make the glass easy to clean inside and out. Available in a contoured profile only.

  • ● The grilles consist of a spacer bar placed between the panes of the insulating glass.
  • ● Shadow bars that are placed between the two panes of insulating glass.
