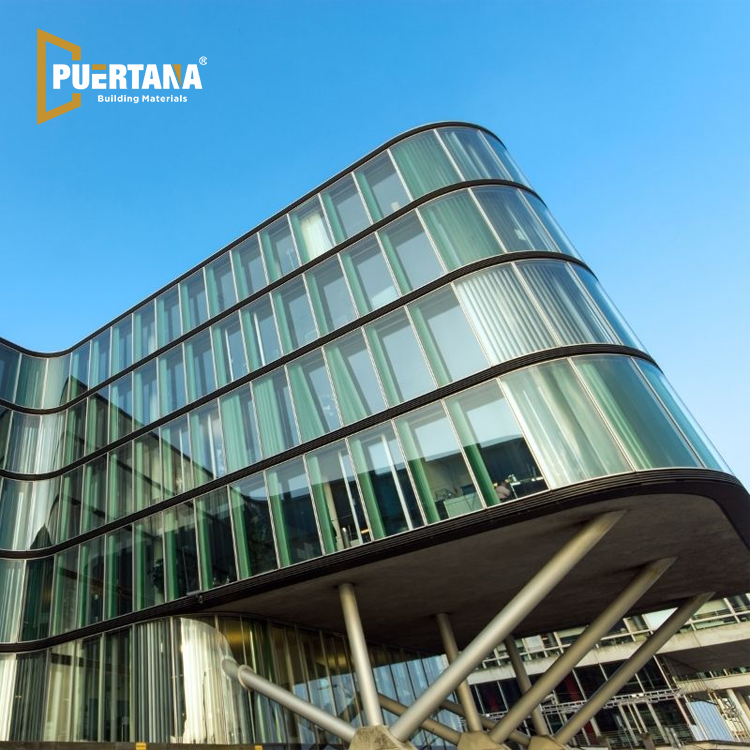

aluminum glass facades curtain walls-0

Aluminum Facades & Curtain Walls

Home >  Products >  Aluminum Facades & Curtain Walls

Products

Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls
Aluminum Glass Facades & Curtain Walls

Aluminum Glass Facades & Curtain Walls

Inquiry Product Testing & Certification
  • Video
  • Description
  • Detailed Photos
  • Color
  • Glass
  • Grille & Screens
  • Hardware
  • Inquiry


Since reinforced concrete and structural steel entered the picture, engineers have learned that thinner columns could still support a building. Even more interesting, they could exist independent of the exterior, meaning outer walls no longer had to shoulder structural loads. Today these outer “curtain” walls offer amazing aesthetics, but they still also serve an important role in sustainability and protecting a building envelope.
Thermal Break Aluminum Fixed Picture Windows factory

Brand Name
Puertana
Open Style
  Fixed, Picture Type
Thermal Insulation
U≤ 1.6W/㎡K
Acoustic Performance
 ≤ 45 DB
Air Tightness
≤ 0.4m³(㎡h)
Wind Load Resistance
≥ 2.8 KPa
Water Penetration
≥ 900Pa
Window Standard
NFRC,CSA,CE
  Glass Standard
IGCC / SGCC / CE
  Warranty
10 Years
  Application
Residential, Commercial
Performance
Thermal Broken, Soundproof
Main Market
USA,CA,EUR.



Definition: What Is a Curtain Wall?

  • ● A curtain wall system is a thin, framed external structure consisting of fill-ins and non-structural partitions. It’s grown into arguably the most popular glazing system – just look around you. Consider the sweeping skyscrapers you see in the city. The sleek, floor-to-ceiling glass walls and framed windows make up a curtain wall system. How do these walls hold up the entire building? They don’t. The framing is attached to the building structure and doesn’t carry any of its load.  So they’re just an aesthetic feature of the architecture, right? Nope again. In most uses, commercial curtain wall systems have a huge job – protecting the building envelope design’s integrity from:

  • 1. Water
  • 2. Cold & hot air
  • 3. UV radiation
  • ●  While these walls are thin, they can hold up against the elements. This is because they use corrosion-resistant materials and any forces they endure (i.e. wind) transfer to the connected building structure. Curtain wall construction requires assembly materials for gasketing, glazing, structural adhesion, weatherproofing, and more.

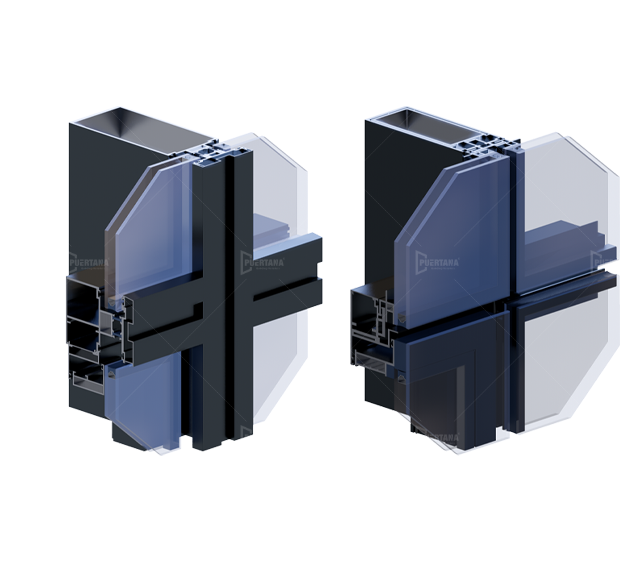

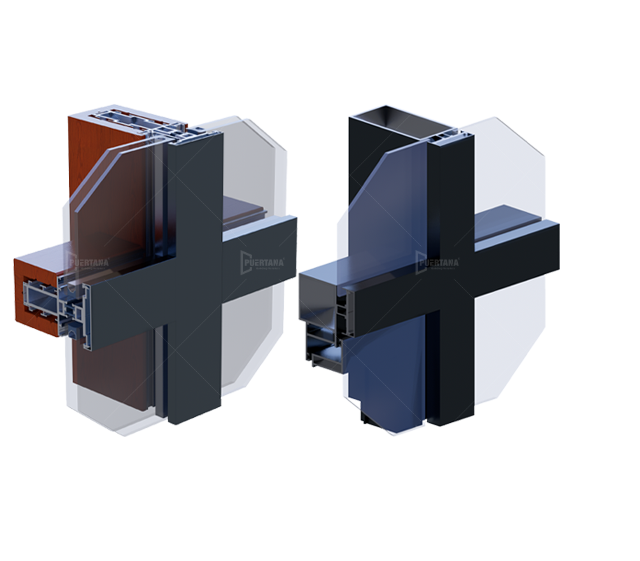

Technical Specs

  • ● Hi-Tech profile and reinforced material
  • ● Reinforced glass fiber thermal insulation bar with high loading capacity
  • ● Pressure extrusion for higher strength level
  • ● Coex wire seal to protect against moisture
  • ● Multi-point hardware lock system for weather sealing and burglarproofing
  • ● Truss structure design for increased structural strength
  • ● Tilt-turn system achieves the AAMA rating of CW-PG60
  • ● Corner locking key ensures the smooth surface joint and improves corner stability
  • ● Glass panel EPDM foam weather sealing strip used for better performance and easier  maintenance than standard glue





What Isn’t a Curtain Wall?

● Sometimes people confuse or compare curtain walls with similar elements of a building’s envelope.

  • Curtain walls vs. window walls: Curtain walls are suspended over the building’s structural elements, providing no support, and extend beyond the length of one floor. Window walls set glass within a wall’s structural components, and each unit is only one floor long.

  • Curtain wall vs. storefronts: Units of a curtain system are also taller than the typical storefront component, which is generally 10-12 ft.


Curtain Wall Materials

A curtain wall gets its unique look from two external cladding components: frames and infills.

Frames

● Aluminum has become a familiar face in building design because of its impressive strength-weight ratio. It has other advantages too:

1. Readily available

2. Naturally forms a corrosion-resistant layer

3. Adaptable to many design ideas

Infill

140x140




140x140

Choose Your Finish

  • ●   Puertana Commen Color: Frosted Black, White Powder Coating
  • ●   Silver grey powder coating, Silver anodising with INTERPON powder
  • ●   Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • ●   Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • ●   White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • ●   Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • ●   Monument(Matt), Clear, Residential Bronze
  • ●   Cedar, Mahogany, Honey Gum, Snow Gum
  • ●   Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.
  • *Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.

Powder Coat Standard Finishes



140x140

    • ●  Single Glass(5mm, 6mm, 8mm, 10mm….)
    • ●   Laminated Glass(5mm+0.76pvb+5mm)
    • ●   Double Toughened Glass(5mm+12air+5mm)
    • ●   Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
    • ●   Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
    • ●   Thickness of single glass: 5-20mm
    • ●   Glass types: Frosted glass, Toughened glass, Low-e coated glass
    • ●   Special performance glass: Fireproof glass, Bulletproof glass
    • ●   Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.


Configurations

●   V-Groove  ●   Obscure  ●   Reeded   ●   Flemish  ●   Glue Chip  ●   Austral

●   Narrow Reeded  ●   Aquatex  ●   Florex   ●   Rain  ●   Hamered  ●   Renova



Full divided light

  • ● Permanently applied grilles on the interior and exterior of the window with a spacer between the glass. Choose from a contoured or contemporary profile.

  • ● It is available in the color that matches the exterior color of the window you choose.
  • ● SDL Grilles are permanently attached to both the interior and exterior glass

  • Grilles-Between-the-Glass

    ● Aluminum grilles conveniently placed between two panes of glass make the glass easy to clean inside and out. Available in a contoured profile only.

  • ● The grilles consist of a spacer bar placed between the panes of the insulating glass.
  • ● Shadow bars that are placed between the two panes of insulating glass.



High-end Accessories Options

  • ● Australia Doric hardware
  • ● America CMECH hardware
  • ● German Hoppe hardware
  • ● China top SMOO Hardware
  • ● German SIEGENIA hardware
  • ● China top KINLONG hardware
  • ● German ROTO hardware
  • ● German GEZE hardware
  • ● Puertana always choose seriously hardwares&accessories for customers with 10 years warranty
