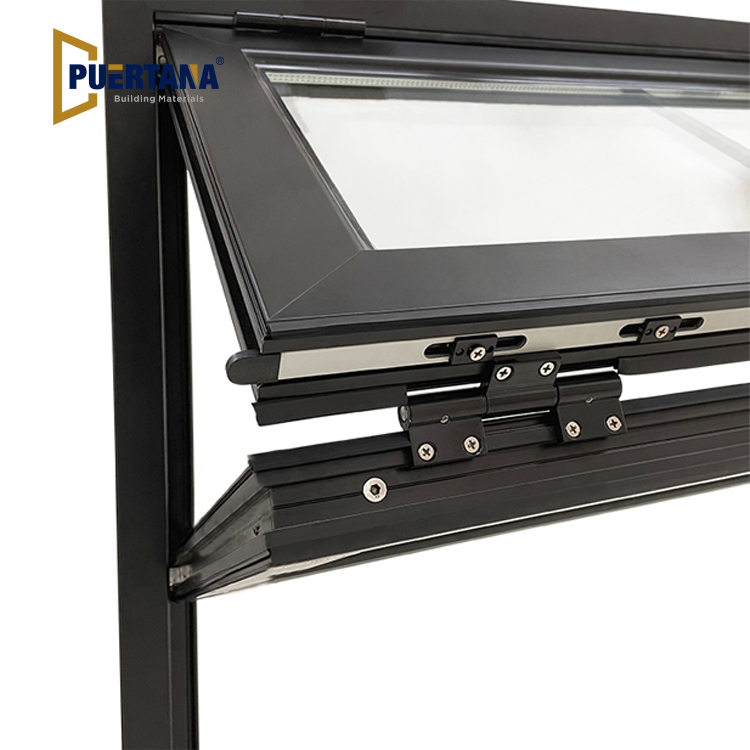

Puertana euro design aluminum fold up windows are great way to open space in your kitchen, living romn & bar area. The easy folding windows grants you a fast and easy transition to any room or environment . The thermal break glass and frame makes the bi folds a perfect choice for upgrading your house and is a energy efficient and cost effective solutions for most openings. Argon gas and True Seal weather stripping keep your home warm in the winters and cool in the summers. The powder coating finish on the aluminum frame enhances its durability against all weather conditions. The tri lock locking mechanism of folding windows have been designed with added security. The German multi lock covers each panel on the sliding track which turns your doors into a solid thermal break wall . Optional bug screen is available to .
Aluminium Vertical Folding Window Push Up Fold Up Windows factory

Brand Name
Puertana
Open Style
  Vertical Folding; Fold Up
Thermal Insulation
U≤ 2.4W/㎡K
Acoustic Performance
 ≤ 45 DB
Air Tightness
≤ 0.4m³(㎡h)
Wind Load Resistance
≥ 2.8 KPa
Water Penetration
≥ 600Pa
Window Standard
NFRC,CSA,CE
  Glass Standard
IGCC / SGCC / CE
  Warranty
10 Years
  Application
Residential, Commercial
Performance
Thermal Broken, Soundproof
Main Market
USA,CA,EUR.

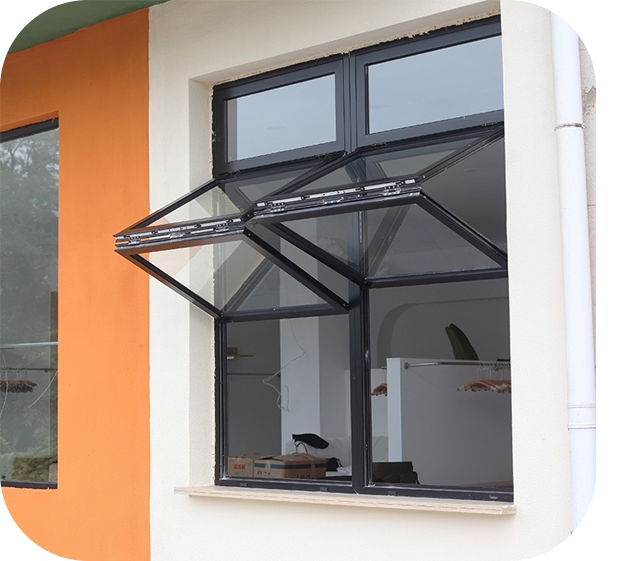

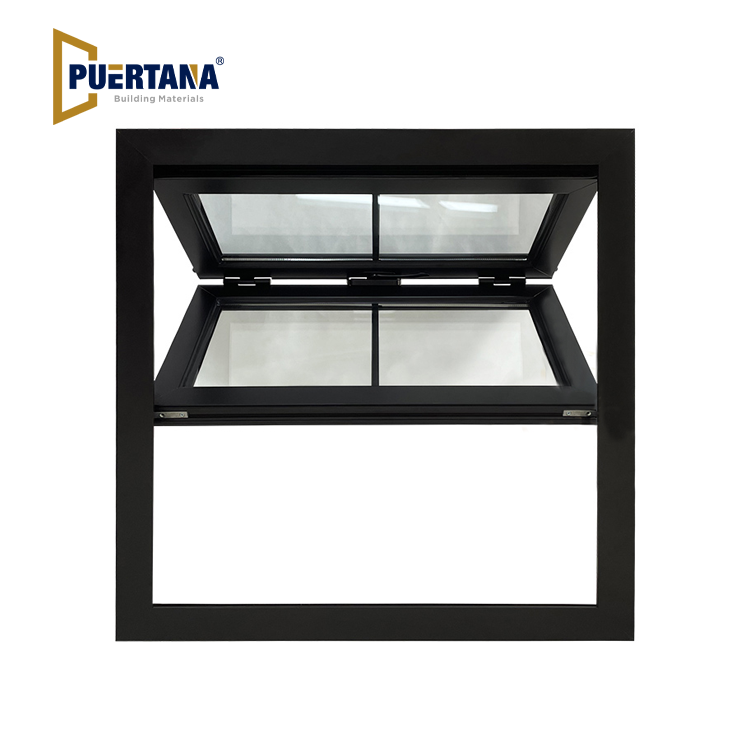

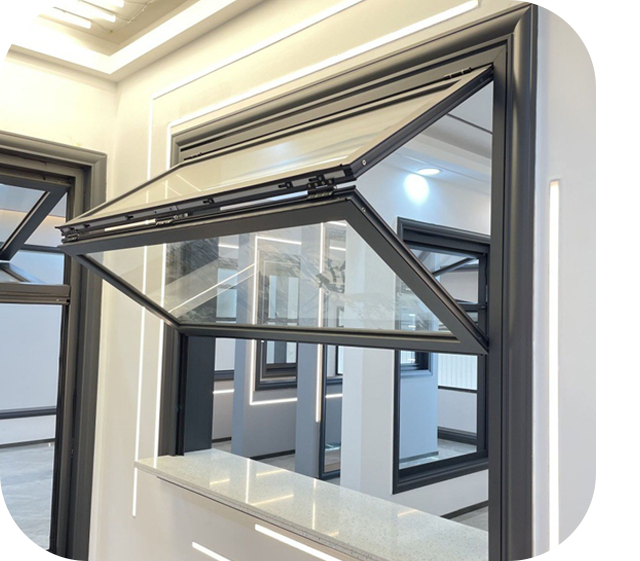

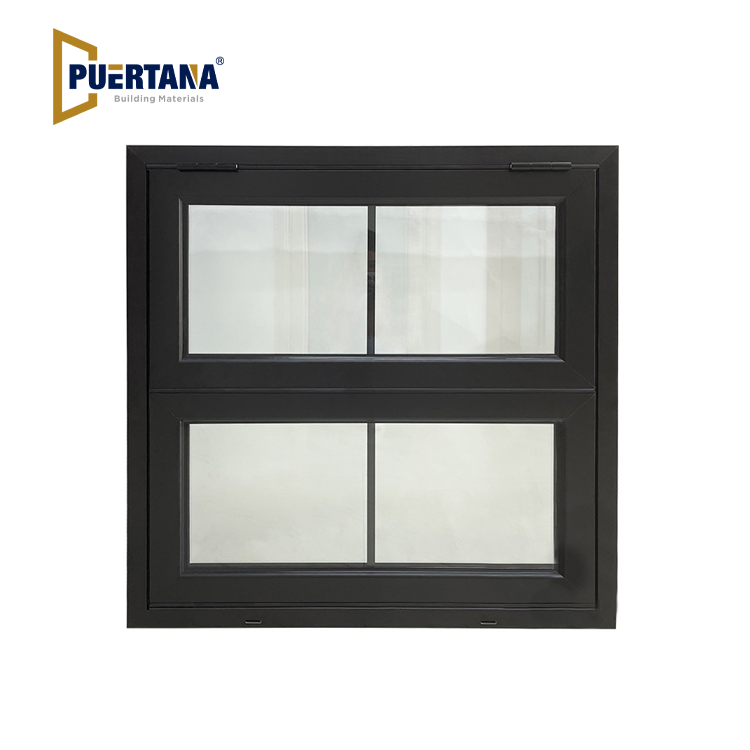

  • ● Introducing Fold Up, a unique window that creates new opportunities to open your living space to the outdoors. The window folds upward to an opening almost twice as large as a traditional double hung. However when closed, the Fold Up has the look, feel, finish, and performance of other traditional wood windows.

    ●  Your aluminum fold up windows will never rust or rot, and they’re made with baked on or anodized finishes, so you’ll never need to paint them. They’re also very attractive, and certain to add curb appeal to the exterior of your home.

    ●  Puertana Fold up windows have long been a popular choice by home owners and builders for their excellent functionality and value for money.

Technical Specs

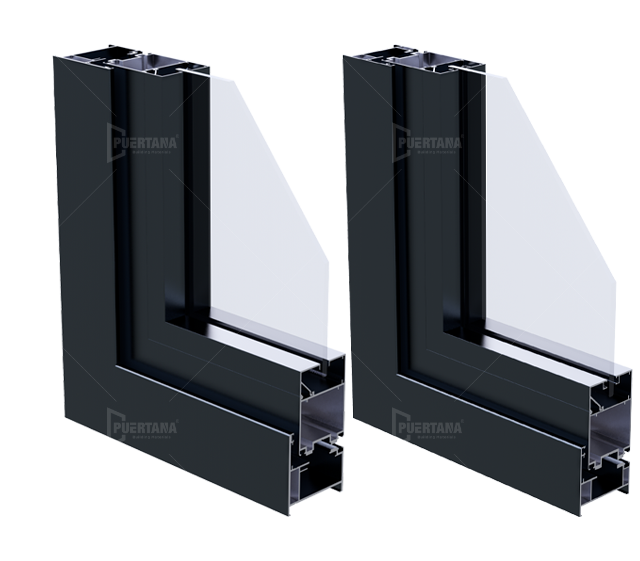

  • ● Hi-Tech profile and reinforced material
  • ● Reinforced glass fiber thermal insulation bar with high loading capacity
  • ● Pressure extrusion for higher strength level
  • ● Coex wire seal to protect against moisture

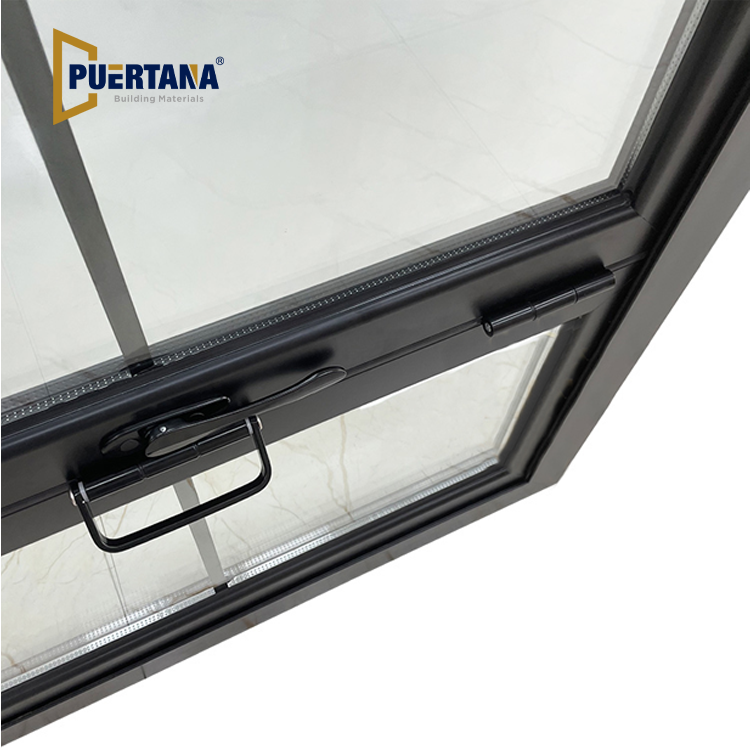

  • ● Multi-point hardware lock system for weather sealing and burglarproofing
  • ● Truss structure design for increased structural strength
  • ● Corner locking key ensures the smooth surface joint and improves corner stability
  • ● Glass panel EPDM foam weather sealing strip used for better performance and easier  maintenance than standard glue





Residential

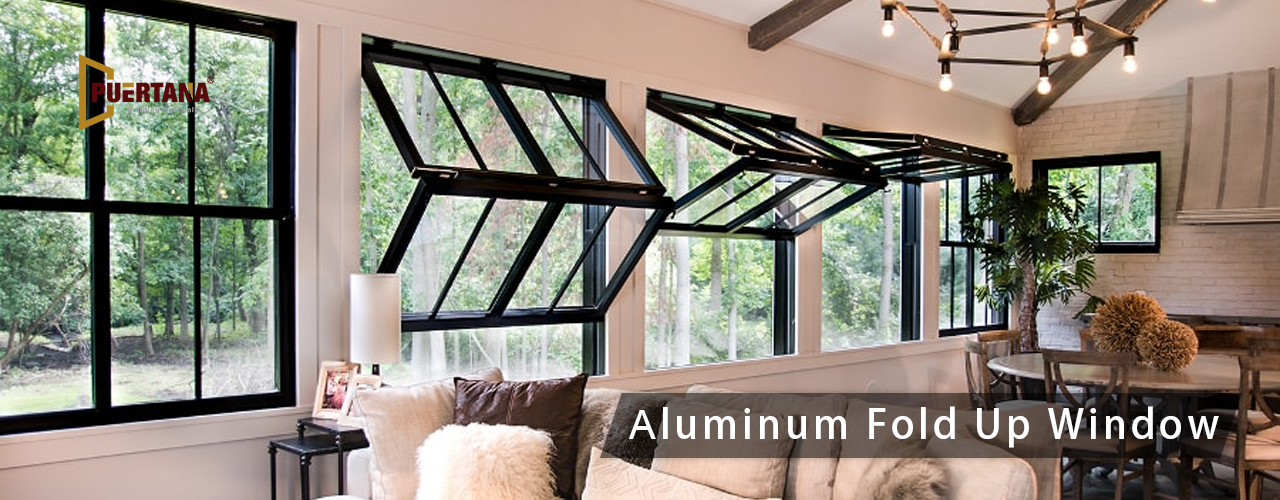

If you are looking for a unique solution to bring the inside out and the outside in, the Fold Up window may be the perfect fit for your project. Upgrade your seasonal screen rooms or porches to create four season enjoyment. Or create convenient, obstruction free pass-through windows for your kitchen, bar, or pool house. And because the Fold Up looks like traditional windows, it can easily blend into your existing architecture.



Commercial

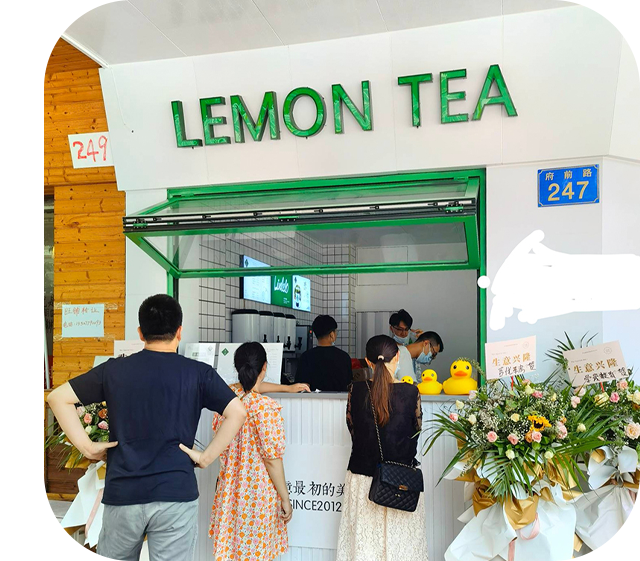

● Creating excitement, comfort and curbside appeal is essential for successful restaurants and retail businesses. Let the Fold Up window create an open flow to the outdoors without losing valuable seating. And unlike movable walls that are either fully open or closed, Fold Up windows can be opened individually to suit your customer’s needs.





140x140

Choose Your Finish

  • ●   Puertana Commen Color: Frosted Black, White Powder Coating
  • ●   Silver grey powder coating, Silver anodising with INTERPON powder
  • ●   Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • ●   Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • ●   White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • ●   Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • ●   Monument(Matt), Clear, Residential Bronze
  • ●   Cedar, Mahogany, Honey Gum, Snow Gum
  • ●   Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.
  • *Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.

Powder Coat Standard Finishes



140x140

    • ●  Single Glass(5mm, 6mm, 8mm, 10mm….)
    • ●   Laminated Glass(5mm+0.76pvb+5mm)
    • ●   Double Toughened Glass(5mm+12air+5mm)
    • ●   Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
    • ●   Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
    • ●   Thickness of single glass: 5-20mm
    • ●   Glass types: Frosted glass, Toughened glass, Low-e coated glass
    • ●   Special performance glass: Fireproof glass, Bulletproof glass
    • ●   Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.


Configurations

●   V-Groove  ●   Obscure  ●   Reeded   ●   Flemish  ●   Glue Chip  ●   Austral

●   Narrow Reeded  ●   Aquatex  ●   Florex   ●   Rain  ●   Hamered  ●   Renova



Full divided light

  • ● Permanently applied grilles on the interior and exterior of the window with a spacer between the glass. Choose from a contoured or contemporary profile.

  • ● It is available in the color that matches the exterior color of the window you choose.
  • ● SDL Grilles are permanently attached to both the interior and exterior glass

  • Grilles-Between-the-Glass

    ● Aluminum grilles conveniently placed between two panes of glass make the glass easy to clean inside and out. Available in a contoured profile only.

  • ● The grilles consist of a spacer bar placed between the panes of the insulating glass.
  • ● Shadow bars that are placed between the two panes of insulating glass.



  • ●   Screen Types: Stainless Steel Mesh, Fiberglass Screen, Retractable Screen
  • ●   Fly and insect screen is a great way to keep insects out of your home
  • ●   All fly screens are supplier with fibreglass mesh as standard
  • ●   Midrail and handle hights depond on customer requirements
  • ●   Fixed Screen is easy installation and removal
  • ●   In-swing Screen can help you enjoy nature and keep the bugs out
  • ●   Rolling Screen let you enjoy an unobstructed view when rulled up
  • ●   The mesh screen is color coated together with the window to match perfectly.
  • ●   Our screens are manufactured using aluminum alloy; strong enough to keep the mesh tight for years to come.

140x140

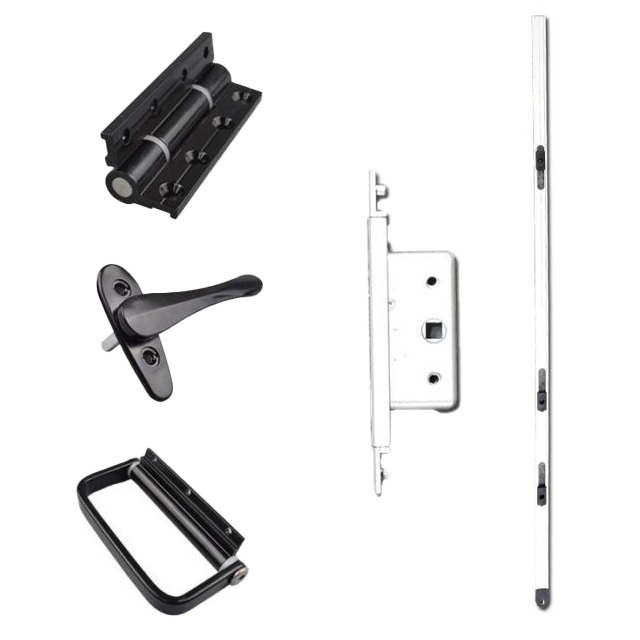

  • ● America CMECH hardware
  • ● German Hoppe hardware
  • ● China top Moyee Hardware
  • ● German SIEGENIA hardware
  • ● China top KINLONG hardware
  • ● German ROTO hardware
  • ● German Kerssenberg hardware
  • ● German Oaosm hardware
  • ● Puertana always choose seriously hardwares&accessories for customers with 10 years warranty
